| อุตสาหกรรมที่ใช้บังคับ: | CEMENT & MINE Roller Press | น้ำหนัก: | 33-315 T |
|---|---|---|---|
| ขนาดฟีด มม: | 25/40 | เงื่อนไข: | ใหม่ |
| การรับประกัน: | 12 เดือน | ลูกกลิ้งกดลูกกลิ้งพื้นผิว: | ลดการสึกหรอโดยการป้องกันการสึกหรอแบบ autogenous |
| ท่าเรือ: | ชิงเต่าจีน | ม้วนบด: | พื้นผิวที่มีกระดุมที่แข็ง |
| เน้น: | industrial cement roller mill,clinker grinding mill,raw material grinding mill |
||
Industrial Grade Cement Roller Mill For Raw/Clinker Grinding
High Pressure Grinding( Roller Presses )
1. The roller crusher can bring excellent material extrusion effects with large amounts of fine powder.
2. Advanced welding technology enables the roller crusher to have a service life of more than 8000 hours.
3. Forged with extrusion roller alloy steel as a whole, it has high loading capacity and reliable performance.
Product advantage:
1. The press roller surface adopts hard alloy stud setting-in structure to increase the life time of the roller sleeve
2. Universal coupling-planetary retarder-press roller to consist of shaft flexible drive system
3. Compound structure of non-contact sealing and contact sealing are adopted at the side of the press roller
4. Unique ellipse structure is used for the feeding pipe to make the feeding process smooth
Product Parameters
| Model | Rolle DIA mm | Roll width (mm) | Main motor (mm) | Feed Size mm | Output Size mm | Production capacity t/h | Weighet/t | Size mm | ||
L | W | H | ||||||||
RP1003 | Φ1000 | 300 | 160*2 | 25/40 | <2mm 65% <0.08mm 25% | 50-70 | 33 | 3835 | 4510 | 1885 |
RP1004 | 400 | 200*2 | 25/40 | 65-90 | 36 | 4080 | 4600 | 1920 | ||
RP1006 | 630 | 315×2 | 25/40 | 105-145 | 55 | 4526 | 5280 | 2200 | ||
RP1204 | Φ1200 | 450 | 220×2 | 30/50 | 95-130 | 62 | 5500 | 4470 | 2340 | |
RP1205 | 500 | 250×2 | 30/50 | 140-165 | 64 | 5550 | 4620 | 2390 | ||
RP1208 | 800 | 455×2 | 30/50 | 180-230 | 90 | 5608 | 5500 | 2460 | ||
RP1406 | Φ1400 | 650 | 455×2 | 35/60 | 225-290 | 104 | 7205 | 5440 | 2610 | |
RP1408 | 800 | 500×2 | 35/60 | 283-362 | 125 | 7400 | 5780 | 2610 | ||
RP1410 | 1000 | 630×2 | 35/60 | 420-460 | 135 | 6400 | 8990 | 3000 | ||
RP1509 | Φ1500 | 900 | 710×2 | 35/60 | 340-460 | 163 | 6610 | 8860 | 3490 | |
RP1614 | Φ1600 | 1400 | 1000×2 | 35/60 | 650-750 | 190 | 7000 | 9320 | 3980 | |
RP1714 | Φ1700 | 1400 | 1250×2 | 40/70 | 710-830 | 240 | 7230 | 9420 | 4100 | |
RP1816 | Φ1800 | 1600 | 1600×2 | 45/80 | 800-1000 | 278 | 8000 | 11100 | 4550 | |
| RP2018 | Φ2000 | 1800 | 2000x2 | 1250-1450 | ||||||

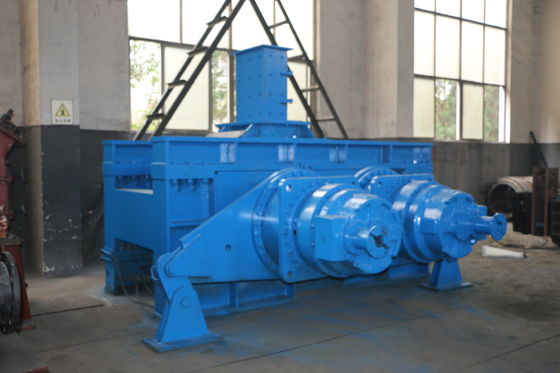

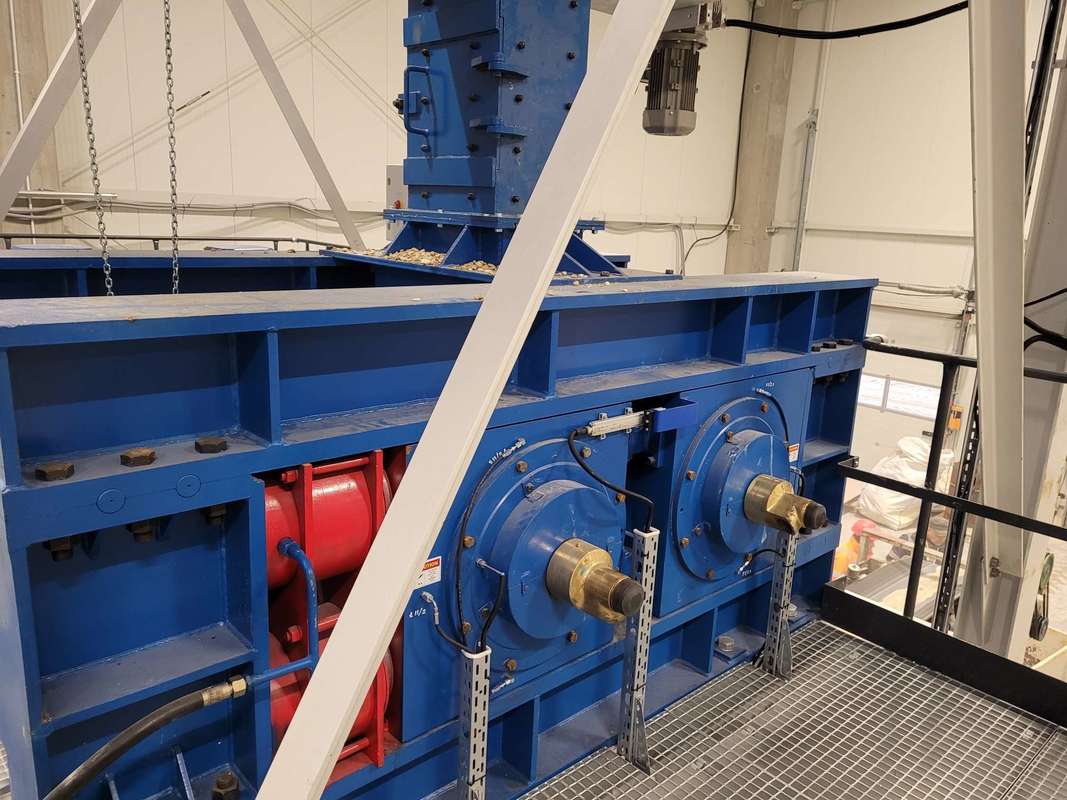

Product Display
