| Shape: | Ring Gear | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining |
|---|---|---|---|
| Tooth Profile: | Helical Gear | Material: | 42CrMo |
| Processing: | Forging | Girth Gear: | Rotary kiln Ring Gear and ball mill Ring Gear |
| Weight: | Max 120 MT single piece | Maximum module: | 45 by hob |
| Port: | Qingdao China | Condition: | New |

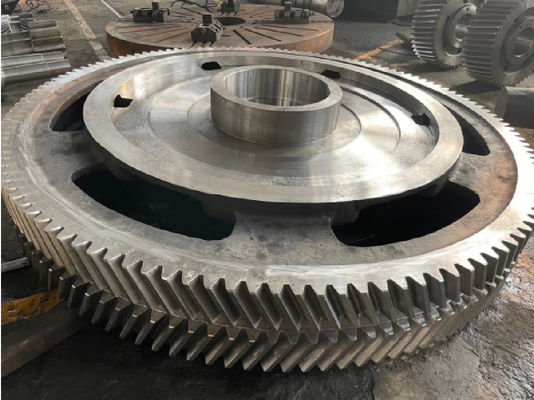

Customized 42CrMo Alloy Steel Hardened Gear Ball Mill Pinion Ball Mill
ZTIC Pinion Gears offered find extensive application in Sponge Iron Plants that have running capacities of -50TPD, 100TPD, 300TPD, 350TPD, 500TPD. Further, these also provide functionality as integral pinion shaft for cement plants/ball mills and as pinion & pinion assemblies for Phosphate mining plants, Alumina, Kaolin-Bentonite plants and others. Further, we can also custom design these in finish specifications as demanded by the customers.
Pinion for:-Sponge iron plant-50TPD, 100TPD,300TPD,350TPD,500TPDIntegral pinion shaft for cement plant or ball millsPinion & pinion assemblies for Alumina, kaolin-bentonite plants, phosphate mining plantMain Type of pinion applications as given below for the all above mentioned plants:Kiln PinionCooler pinionPinion shaftPinion assembled with shaft, bearings, plummer blocksIntegral pinion shaft upto 3 mtr total lentgh.
Product Parameters
| 42CRMO STEEL DATA CHEMICAL LIST |
| C : 0.38-0.45% |
| Si: 0.17-0.37% |
| Mn: 0.50-0.80% |
| S : Allow residual content <0.035% |
| P : Allow residual content <0.035% |
| Cr: 0.90-1.20% |
| Ni: Allow residual content <0.030% Cu: Allow residual content <0.030% |
| Mo: 0.15-0.25% |
| MECHANICAL DATA |
| Tensile Strength σb (MPa): >1080(110) |
| Yield point σs (MPa): >930(95) |
| Elongation σ5 (%): >12 |
| Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63 |
| Impact toughness value αkv (J/cm2): >78(8) |
| Hardness: <217HB |
| Sample size: The blank size of the sample is 25mm |
| PHYSICAL DATA |
| Critical point temperature (approximate value): Ac1=730ºC, Ac3=800ºC, Ms=310ºC |
| Linear expansion coefficient: temperature: 20~100ºC/20~200ºC/20~300ºC /20 ~400ºC/20~500ºC /20~600ºC |
| linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K |

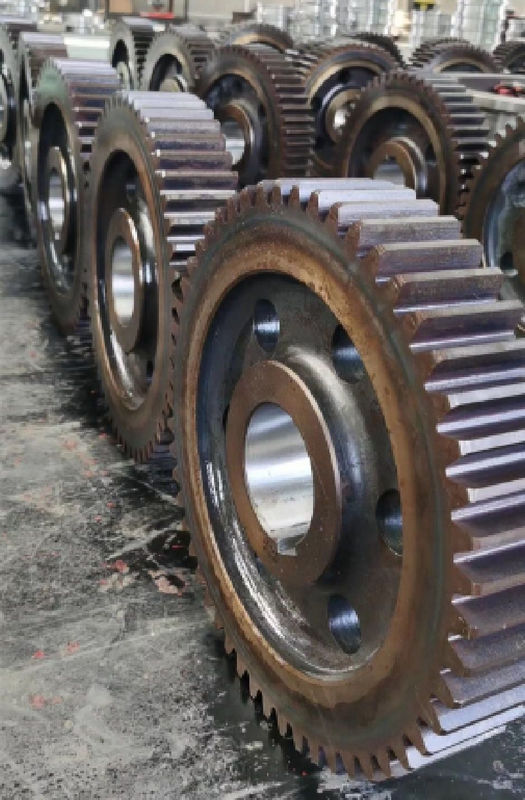

Product Display
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
