รายละเอียดสินค้า:
การชำระเงิน:
|
| คำสำคัญ: | อุปกรณ์แต่งตัวแร่ | น้ำผลิตภัณฑ์: | 5 ~ 9% |
|---|---|---|---|
| Sceen Bowl เส้นผ่านศูนย์กลางขนาดใหญ่: | 850 มม | ประเภทสินค้า: | ถ่านหิน/เกลือหมุนเหวี่ยง |
| ขนาดหน้าจอตะเข็บ: | 0.25,0.3,0.35,0.5 มม. | กำลังมอเตอร์หลัก: | 15kW |
| แอมพลิจูดสองเท่า: | 4~6 มม | การใช้งาน: | พืชขาดน้ำ |
| สี: | คุ้มค่า | ท่าเรือ: | ชิงเต่า |

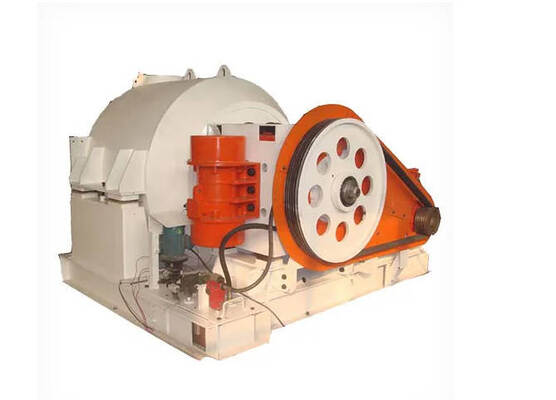

High Efficiency Dehydration Low-Loss TWZ Series Horizontal Vibrating Centrifuge
The TWZ series horizontal vibrating centrifuge is a horizontal vibrating discharge centrifugal dewatering equipment, mainly used for dewatering 0.5-50mm lump coal in coal preparation plants. It can also be used for dewatering similar materials such as salt and sand.
Structural Features and Working Principle
This equipment separates materials into solids and liquids on a high-speed rotating screen. A vibration system applies a vibration force to the material on the screen, thus achieving automatic discharge. The TWZ series adopts an inertial over-resonance vibration system, with stable and reliable amplitude and frequency, offering advantages such as smooth operation, low noise, simple structure, convenient maintenance, and energy saving.
Main Advantages
High-efficiency dewatering: Large processing capacity and excellent dewatering effect.
Low loss: Low product breakage, screen is not easily worn, has a long service life, and low coal pulverization rate.
Operation and Maintenance: Convenient operation and maintenance, simple structure, low noise, high reliability, and low cost.
Economy: Low initial investment, small footprint, low energy consumption, and low power consumption per ton of coal.
Product parameters of Ore Dressing Equipment
| Parameters | Unit | Model | ||||||
| TWZ850 | TWZ10A | TWZ1150 | TWZ1300 | TWZ1400 | TWZ1500 | |||
| Feed size | mm | ≤ | 0~25 | 0.5~50 | 0~50 | ≤50 | 0.5~50 | |
| Capacity | t/h | 30~50 | 50~100 | 100~150 | 180~250 | 200~300 | 250~350 | |
| Product water | % | 5~9 | ||||||
| sceen bowl big end diameter | mm | 850 | 1000 | 1150 | 1300 | 1400 | 1500 | |
| Seam screen size | mm | 0.25,0.3,0.35,0.5 | ||||||
| Screen vibration frequency | Hz | 25 | 25 | 25 | 25 | 25 | 25 | |
| double-amplitude | mm | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 | |
| Main motor power | Kw | 15 | 22 | 37.5 | 45 | 55 | 75 | |
| Vibration motor power | Kw | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Oil pump motor power | Kw | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | |
| Dimension | L | mm | 2060 | 2150 | 2800 | 2700 | 3100 | 3170 |
| W | mm | 1510 | 1875 | 1930 | 2260 | 3090 | 2975 | |
| H | mm | 1652 | 1765 | 1930 | 2245 | 2295 | 2400 | |
| Weight | Kg | 2500 | 2620 | 5527 | 6500 | 9200 | 10000 | |
Note: TWZ series horizontal vibrating centrifuge external water related to material properties, particle size composition, processing, but mainly depends on the material content of coal slime. Into the material - 0.5 mm size content < 10%, TWZ series horizontal vibrating centrifuge external water for 5 ~ 9%.

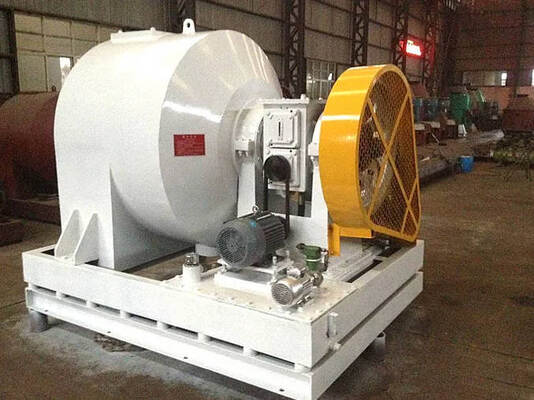

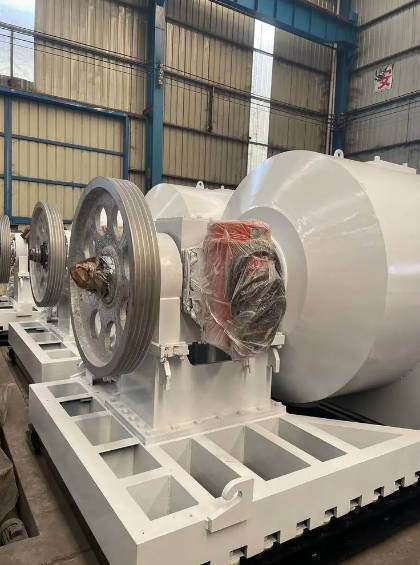

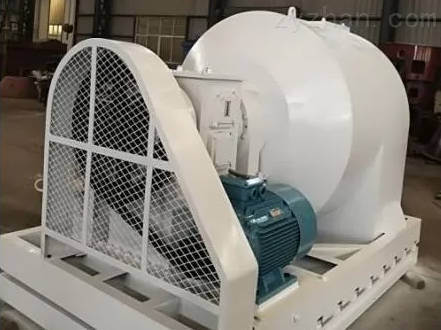

Product Display Of Ore Dressing Equipment
Ore Dressing Equipment
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
