รายละเอียดสินค้า:
การชำระเงิน:
|
| หมายเลขชั้น: | 10-44 | พื้นที่กรอง (ตร.ม.): | 0.078-7 |
|---|---|---|---|
| ขนาดแผ่น(มม.): | Ф100-400*400 | ความแม่นยำในการกรอง(ไมโครเมตร): | 0.22-100 |
| แรงดันกรอง (mpa): | 0.3 | การไหลของน้ำ(t/h): | 0.8-23 |
| พลังปั๊มป้อนอาหาร: | 0.37-1.5 | การรับประกัน: | 12 เดือน |
| เงื่อนไข: | ใหม่ | ท่าเรือ: | ชิงเต่าจีน |
Industrial Grade Precision Filter Made Of Stainless Steel 304 Material High Precision Filtration
Product Introduction
Stainless Steel Plate-Frame Multi-Layer Filter Press ,As precision liquid filtration equipment, this unit features mirror-polished surfaces throughout and employs filter cloth or membrane filtration technology.
Applications: Solid-liquid separation and liquid filtration in laboratories, fine chemicals, pharmaceuticals, traditional Chinese medicine extraction, food processing, cosmetics, and related industries.

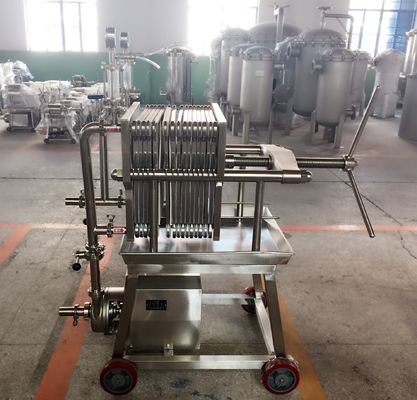

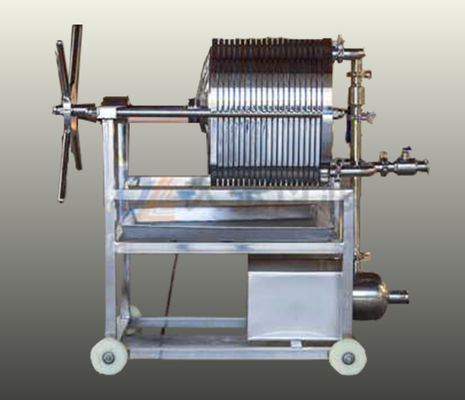

Product Display
Product Parameters
| Model | Layer NO. | Filter area(m2) | Plate Size(mm) | Filtering Precision(μm) | Filter pressure(mpa) | Water flow(t/h) | Feeding Pump Power | Dimensions L*W*H(mm) |
| DZCR-100 | 10 | 0.078 | Ф100 | 0.22-100 | 0.3 | 0.8 | 0.37 | 600*300*600 |
| DZCR-150 | 10 | 0.17 | Ф150 | 0.22-100 | 0.3 | 1.5 | 0.55 | 650*380*650 |
| DZCR-200 | 10 | 0.34 | Ф200 | 0.22-100 | 0.3 | 2 | 0.75 | 650*400*700 |
| DZCR-300 | 10 | 0.7 | Ф300 | 0.22-100 | 0.3 | 4 | 0.75 | 700*500*800 |
| DZCR-400 | 10 | 1.25 | Ф400 | 0.22-100 | 0.3 | 6 | 1.1 | 900*600*1000 |
| DZCR-400 | 16 | 2 | Ф400 | 0.22-100 | 0.3 | 9 | 1.5 | 1000*600*1000 |
| DZCR-400 | 20 | 2.5 | Ф400 | 0.22-100 | 0.3 | 10 | 1.5 | 1100*600*1000 |
| DZCR-400 | 32 | 4 | Ф400 | 0.22-100 | 0.3 | 13 | 1.5 | 1320*600*1000 |
| DZF-200 | 10 | 0.4 | 200*200 | 0.22-100 | 0.3 | 3 | 0.55 | 650*380*650 |
| DZF-300 | 10 | 0.9 | 300*300 | 0.22-100 | 0.3 | 6 | 0.75 | 700*500*800 |
| DZF-400 | 10 | 2 | 400*400 | 0.22-100 | 0.3 | 10 | 1.1 | 900*600*1000 |
| DZF-400 | 20 | 3 | 400*400 | 0.22-100 | 0.3 | 12 | 1.1 | 1100*600*1000 |
| DZF-400 | 26 | 4 | 400*400 | 0.22-100 | 0.3 | 15 | 1.1 | 1150*600*1000 |
| DZF-400 | 32 | 5 | 400*400 | 0.22-100 | 0.3 | 18 | 1.5 | 1200*600*1000 |
| DZF-400 | 38 | 6 | 400*400 | 0.22-100 | 0.3 | 21 | 1.5 | 1300*600*1000 |
| DZF-400 | 44 | 7 | 400*400 | 0.22-100 | 0.3 | 23 | 1.5 | 1350*600*1000 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
