รายละเอียดสินค้า:
การชำระเงิน:
|
| เงื่อนไข: | ใหม่ | การรับประกัน: | 12 เดือน |
|---|---|---|---|
| เส้นผ่านศูนย์กลาง: | 800 มม. | ความเร็วในการหมุน: | 1200/1500rad/นาที |
| ท่าเรือ: | ชิงเต่าจีน | การจำแนกประเภท: | อุปกรณ์แต่งตัวแร่ |
| ปริมาณ: | 115L | ||
| เน้น: | PGZ automatic scraper centrifuge,ore dressing scraper centrifuge,stable operation scraper centrifuge |
||

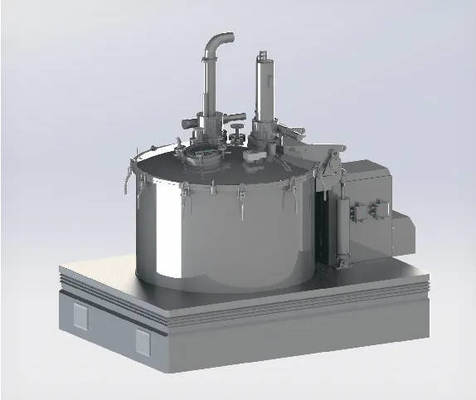

Stable Operation And Easy To Use PGZ Automatic Scraper Centrifuges
The PGZ automatic scraper centrifuge is an automated device for solid-liquid separation, mainly used in pharmaceuticals, food, and fine chemicals.
PGZ series discharges solids at the bottom by the scraper. After the rotating drum's speed is slowed down, then solid will be discharged by scraper. And all steps can be programed according to needs: feeding, washing,
dewatering, discharging etc., and can use remote control. It's features of steady running, easy operation, high-level automation, big capacity, better filtering effect etc.. The machine is suitable for solid solutions, fibers, especially for toxic and flammable materials. It's widely used for chemicals, medicines, food, light industry etc..
Product Parameters of Ore Dressing Equipment
Technical Data Of PGZ automatic scraper centrifuges
| Model | Rotating DrumCentrifugal Factor | Centrifugal Factor(w2/g) | Power(kw) | Total Weight(kg) | DimensionL*B*H(mm) | |||
| Diameter(mm) | Rotation Speed(rad/min) | Volume(L) | Material Weight(kg) | |||||
| PGZ800 | 800 | 1200/1500 | 115 | 155 | 654/1008 | 7.5/11 | 2500 | 1850*1450*2050 |
| PGZ1000 | 1000 | 1000/1200 | 175 | 250 | 560/806 | 11/15 | 3500 | 2000*1550*2150 |
| PGZ1250 | 1250 | 960/1100 | 400 | 530 | 645/770 | 18.5/22 | 5000 | 2260*1765*2350 |

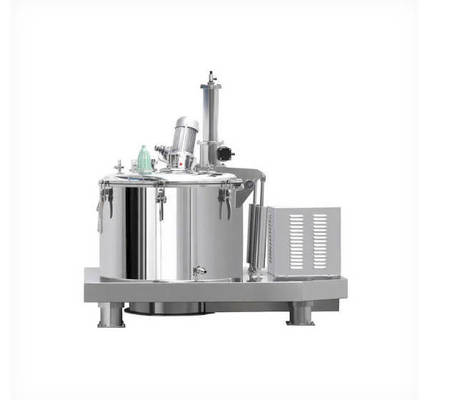

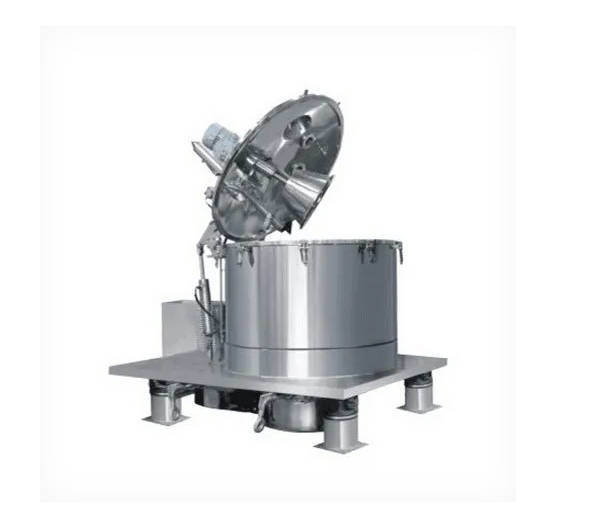

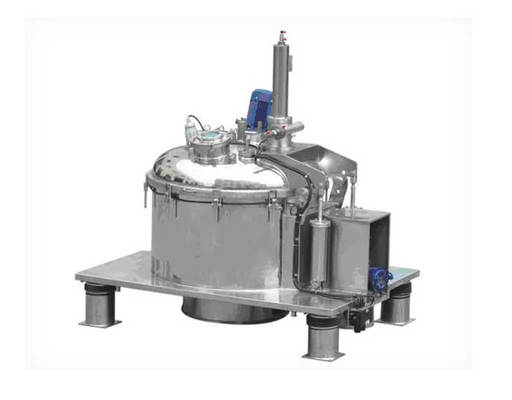

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
