รายละเอียดสินค้า:
การชำระเงิน:
|
| เงื่อนไข: | ใหม่ | การรับประกัน: | 12 เดือน |
|---|---|---|---|
| ความกว้างของเข็มขัด: | 500 มม. | ความจุ: | 3-5.2ลบ.ม.ชม |
| ท่าเรือ: | ชิงเต่าจีน | การจำแนกประเภท: | อุปกรณ์แต่งตัวแร่ |
| เค้กความชื้น: | 65-84% | ||
| เน้น: | stainless steel drum belt filter press,carbon steel drum filter press,ore dressing belt filter press |
||

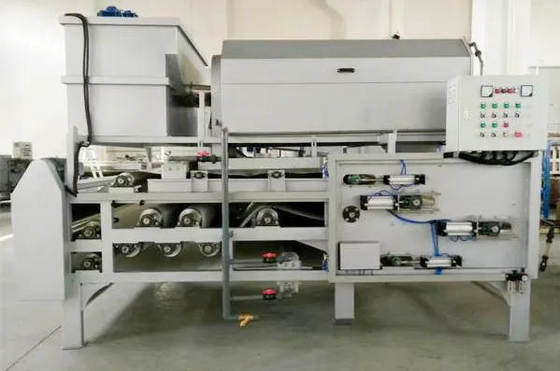

Automation Drum Concentrated Belt Fiter Press(Stainless Steel Or Carbon Steel)
The belt drum thickener and dewatering machine is a continuous treatment device that combines sludge thickening and dewatering functions. The main structure can be constructed of stainless steel or carbon steel.
Application and Selection
Applicable Industries: Municipal sewage treatment plants, sand washing wastewater from sand making plants, papermaking, printing and dyeing, chemical industry, mining, and other industries that treat high-suspended-matter wastewater.
Product Parameters of Ore Dressing Equipment
Technical Data Of Drum concentrated belt fiter press(Stainless steel or carbon steel)
| Model | Belt Width(mm) | Capacity(m3/hr) Feed concentration (Solid content 0.5-1%) |
Dry Solid(kg/hr) | Cake Moisture(%) |
Power (kw) | S.STray |
Reference Dimensions(mm) |
Foundation Dimensions L2×W1(mm) |
Weight(kgs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power of Driving Motor | Mixing Power | Drum concentrator motor power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| W | H | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY500 | 500 | 3-5.2 | 45-78 | 65-84 | 0.75 | 0.37 | 00.37 | with | 2600 | 1050 | 2175 | 2100*836 | 800 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY750 | 750 | 4.5-7.5 | 68-113 | 65-84 | 0.75 | 0.37 | 0.37 | with | 2600 | 1300 | 2175 | 2100*1086 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY1000 | 1000 | 6-10.5 | 98-158 | 65-84 | 0.75 | 0.37 | 0.37 | with | 2600 | 1550 | 2270 | 2100*1336 | 1200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY1250 | 1250 | 7-12.5 | 113-188 | 65-84 | 0.7 | 0.37 | 0.37 | with | 2600 | 1800 | 2270 | 2100*1586 | 1400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY1500 | 1500 | 9.5-15 | 143-240 | 65-84 | 0.75 | 0.37 | 0.37 | with | 2600 | 2050 | 2270 | 2100*1836 | 1800 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY1500L | 1500 | 12-20.5 | 180-308 | 65-84 | 0.75 | 0.55 | 0.55 | with | 2600 | 2300 | 2510 | 2455*1866 | 2200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY1750 | 1750 | 15-24.5 | 225-368 | 65-84 | 1.1 | 0.55 | 0.55 | without | 3190 | 2300 | 2510 | 2455*2096 | 2400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY2000 | 2000 | 18-30 | 270-450 | 65-84 | 1.5 | 0.75 | 0.75 | without | 3190 | 2550 | 2510 | 2455*2346 | 2800 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY2500 | 2500 | 25-35 | 300-550 | 65-84 | 2.2 | 0.55*2 | 0.55*2 | without | 4300 | 3300 | 2850 | 3550*2846 | 3200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DNY3000 | 3000 | 30-45 | 360-675 | 65-84 | 3 | 0.75*2 | 0.75*2 | without | 4300 | 3550 | 2850 | 3550*3346 | 3600 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remark | Decided by the Sludge type | Can be customized |
We will supply with drawings | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Display of Ore Dressing Equipment
Ore Dressing Equipment
