| เงื่อนไข: | ใหม่ | การรับประกัน: | 12 เดือน |
|---|---|---|---|
| ความกว้างของแผ่นกรอง MATCSNA: | 800*800 มม. | น้ำหนัก: | 305kg/m |
| ท่าเรือ: | ชิงเต่าจีน | การจำแนกประเภท: | อุปกรณ์แต่งตัวแร่ |
| เน้น: | automatic filter press drip tray,sludge discharge drip tray,ore dressing equipment drip tray |
||
Automatic Drip Tray Of Sludge Discharged By Filter Press
The automatic flip plate of the filter press is a liquid collecting device installed under the filter plate. It is used to collect the liquid dripping between the filter plates during the filtration process, avoid environmental pollution and improve dehydration efficiency.
The drip tray beneath the filter press. While filtering, the tray closed, so the leakage or filtrate will be guided to the channels on both sides. While cake discharging, the tray will be open to guide the cakes.
Effect
Environmental protection: Collect dripping liquid to avoid contaminating the work site.
Improve efficiency: reduce the moisture content of the material in the mud storage bucket, and facilitate subsequent processing.
Automated operation: linking with the compression and return actions of the filter press to achieve automatic control.
Product Parameters of Ore Dressing Equipment
| Model | MatcSna filter plate width(mm) | Weight(kg/m) | Motor Power(KW) | Speed (R/Min) | Dimensions(mm) | |||
| B | B2 | B3 | B3 | |||||
| FB800.00 | 800*800 | 305 | 0.37 | 0.58 | 600 | 848.4 | 1000 | 1350 |
| FB1000.00 | 1000*1000 | 513 | 0.37 | 0.58 | 800 | 1048.4 | 1300 | 1650 |
| FB1250.00 | 1250*1250 | 830 | 0.37 | 0.58 | 900 | 1148.4 | 1500 | 1850 |
| FB1500.00 | 1500*1500 | 1146 | 1.5 | 0.58 | 100 | 1458.4 | 2000 | 2300 |
| FB2000.00 | 2000*2000 | 2160 | 1.5 | 0.58 | 1200 | 1658.4 | 2600 | 2900 |

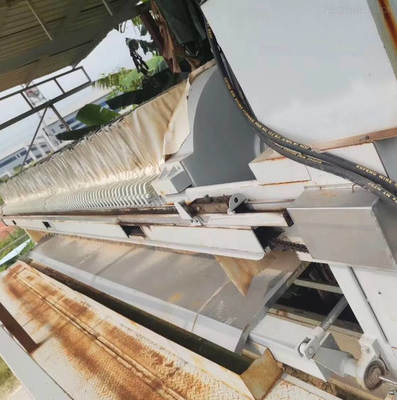

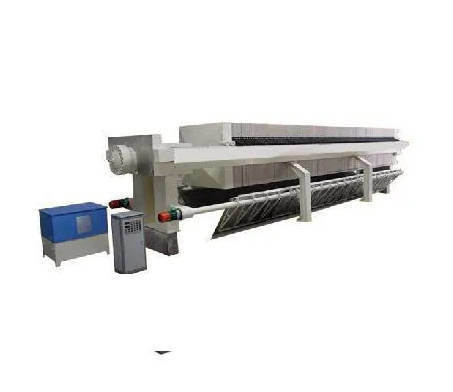

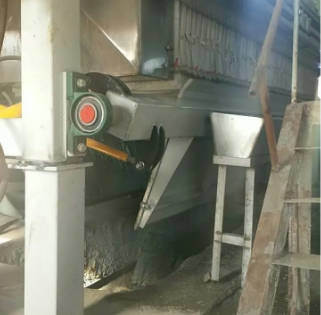

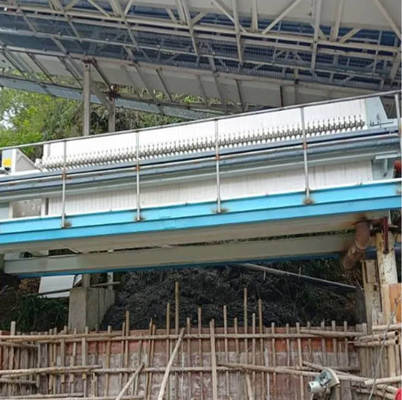

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
