| Product: | Cone Crusher | Type: | DP Single Cylinder Hydraulic Cone Crusher |
|---|---|---|---|
| Advantage: | The grain type is neat and the yield is high | Used for: | Coarse crushing, medium crushing, fine crushing. |
| Weight: | 7350 KG | Power: | 90 KW |
| Classification: | Stone Crusher Machine | Warranty: | 12 months |
| Port: | Qingdao |

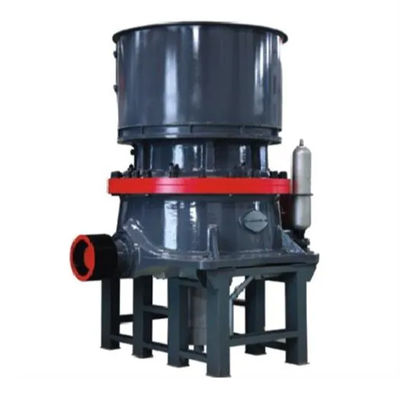

Continuous And Stable Operation Of DP Single-Cylinder Cone Crusher
The DP single-cylinder cone crusher is a crushing equipment used for fine crushing of minerals and is widely applied in numerous sectors such as mining, metallurgy, building materials, highways, railways, water conservancy and chemical industries.
Product advantages of Stone Crusher Machine
Uniform particle shape and high output: It can produce finished products with uniform particle shape, meeting the high-standard material requirements and having a relatively high output at the same time.
Strong crushing capacity: It has a large crushing capacity and is suitable for crushing materials of medium and hard strength and above.
Continuous and stable operation: The equipment operates stably and can work continuously for a long time.
Automatic overload protection: It is equipped with an automatic overload protection function to prevent iron from mixing in, which enhances the safety of the equipment.
Uniform wear of the liner: The rotating feeding device ensures uniform wear of the liner, thereby extending the service life of the equipment.
Hydraulic cavity cleaning system: The adoption of a hydraulic cavity cleaning system reduces downtime.
Multiple cavity type options: Each specification of the crusher has a variety of cavity types, and users can choose the appropriate cavity type according to different needs.
Good sealing performance: It adopts grease sealing, avoiding the problem of easy clogging in the water supply and drainage systems.
Spring safety system: As an overload protection device, it allows foreign objects to pass through the crushing chamber without damaging the crusher.
Working principle of Stone Crusher Machine
When the equipment is in operation, the rotation of the motor drives the crushing cone to perform a swinging motion through the transmission system. The material is subjected to squeezing and bending in the crushing chamber, thus achieving crushing.
Product parameters of Stone Crusher Machine
| Model l | Cavity type | Maximum feeding size (mm) |
Discharge port (CSS) corresponding output (t/h) | |||||||||||||||
| 19mm | 22mm | 25mm | 29mm | 32mm | 35mm | 38mm | 41mm | 44mm | 48mm | 51mm | 54mm | 60mm | 64mm | 70mm | 76mm | |||
| DP100S | M | 170 | 85-90 | 105-145 | 125-175 | 145-200 | 165-215 | |||||||||||
DP430S |
EC | 360 | 126 | 138-173 | 147-230 | 156-293 | 165-310 | 174-327 | 183-344 | 196-306 | 205-256 | |||||||
| C | 300 | 108 | 116-145 | 127-199 | 135-254 | 144-270 | 152-285 | 161-301 | 196-264 | 108 | ||||||||
| MC | 235 | 91 | 98-123 | 106-166 | 116-218 | 124-232 | 131-246 | 139-261 | 147-275 | 154-241 | 165 | |||||||
DP440S |
EC | 450 | 267 | 282-353 | 298-446 | 313-563 | 334-601 | 350-524 | 365-456 | |||||||||
| C | 400 | 225 | 239-299 | 254-381 | 269-484 | 284-511 | 298-448 | 318-398 | 333 | |||||||||
| MC | 300 | 195 | 214-267 | 228-342 | 242-435 | 256-461 | 270-486 | 284-426 | 303-378 | 317 | ||||||||
| DP660S | EC | 560 | 349 | 368-460 | 392-588 | 410-718 | 428-856 | 465-529 | 489-978 | 525-1050 | 562-983 | |||||||
| C | 500 | 318 | 336-420 | 353-618 | 376-753 | 394-788 | 411-823 | 446-892 | 469-822 | 504-631 | ||||||||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
